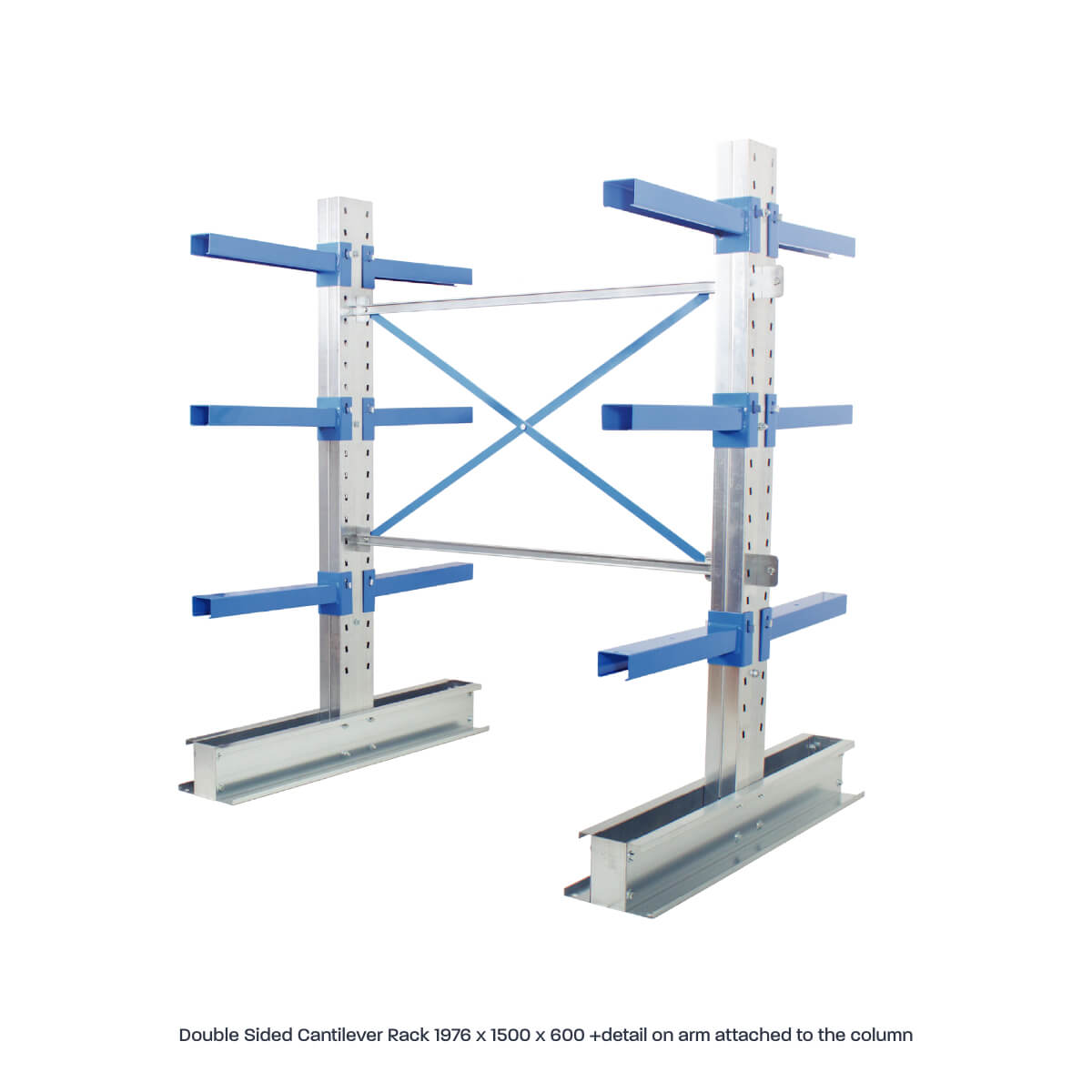

Cantilever Racking – Double Sided

SKU: N/A Category:

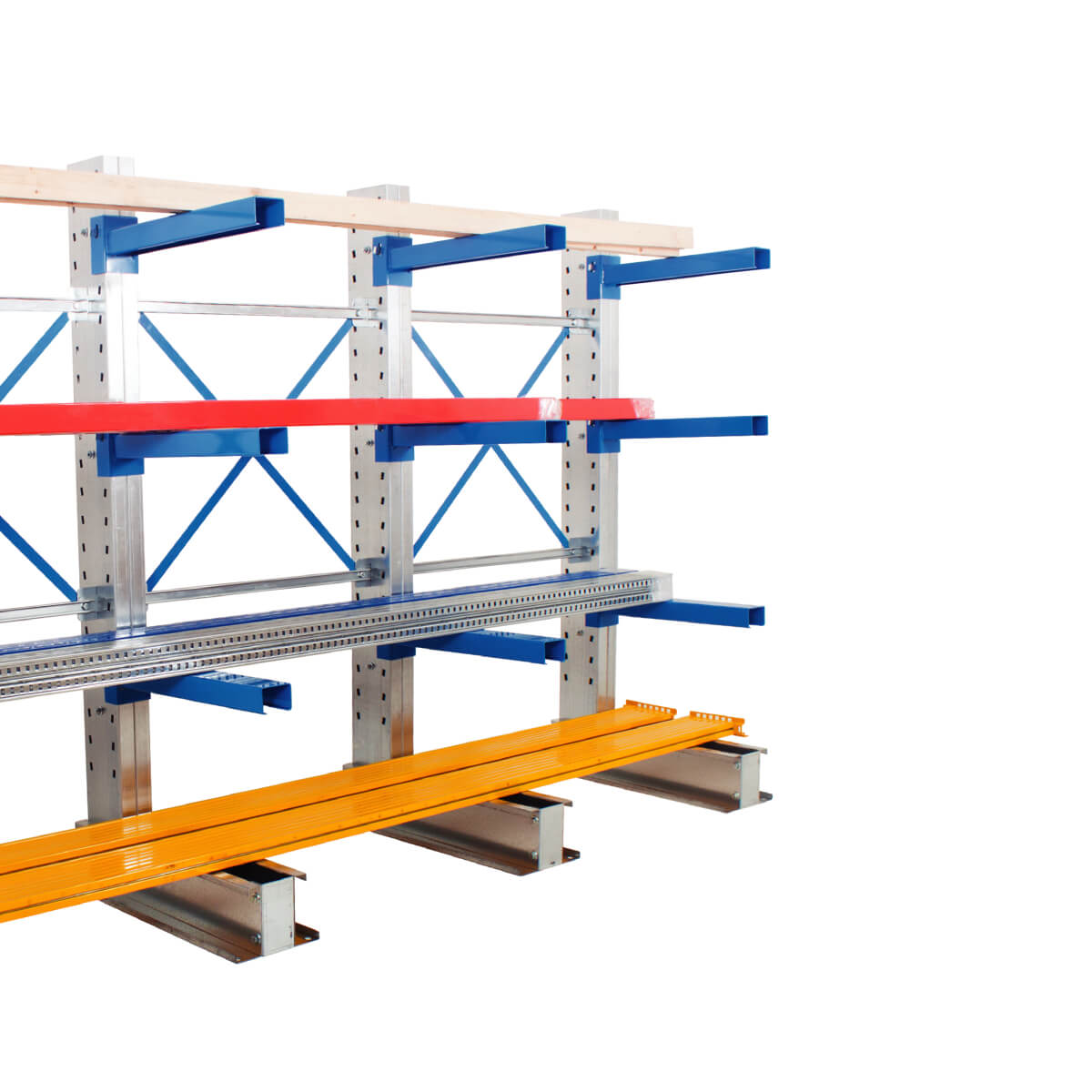

Our cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items.

The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.

The arms can be fitted with end stops (at an additional cost shown) to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.

All bays are supplied with a base and column per frame plus bracing and all necessary fixings (Floor Fixings ‘M12x100’ available on request). Single frames include three arms, double frames include six arms. Arm end stops are not included as standard, but can be ordered.

  • 600kg Arm Load
  • 2200kg Per Side
  • 5 Year Guarantee
  • Arms adjust every 75mm
  • Tough epoxy finish

If you have any questions or would like to know more about any product on our site, please get in touch at sales@work-flo.co.uk and we will be happy to answer your queries.

Additional information

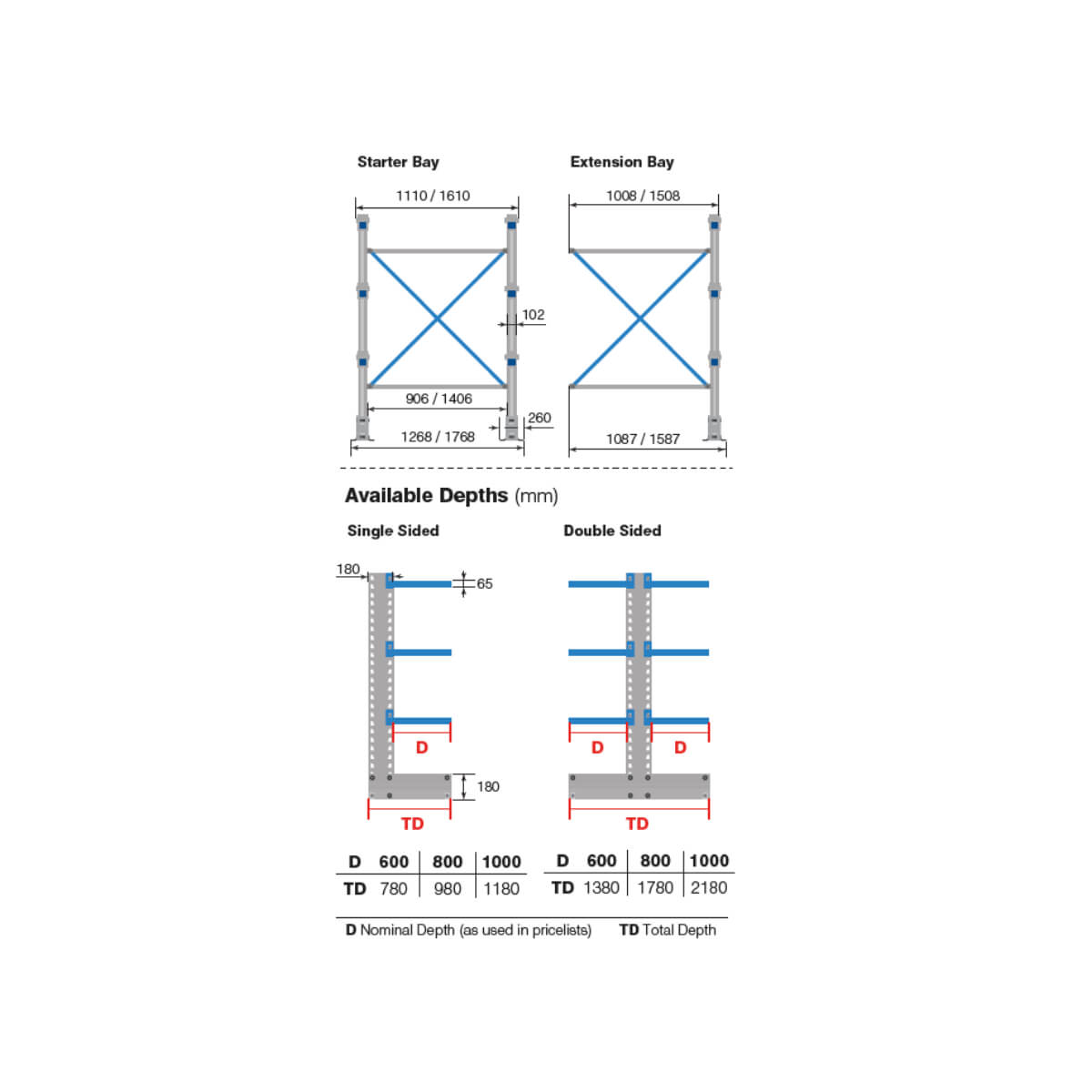

Sizes - H x W x D(mm)

1976 x 1000 x 600, 1976 x 1000 x 800, 1976 x 1000 x 1000
